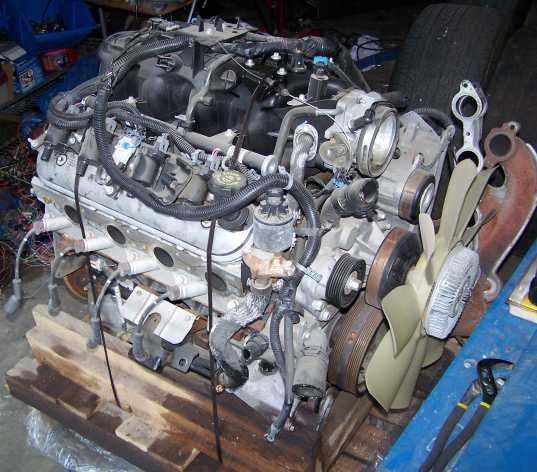

This is the Graboids newest modification.  A 5.3 Liter Gen III "LS1" Chevy .

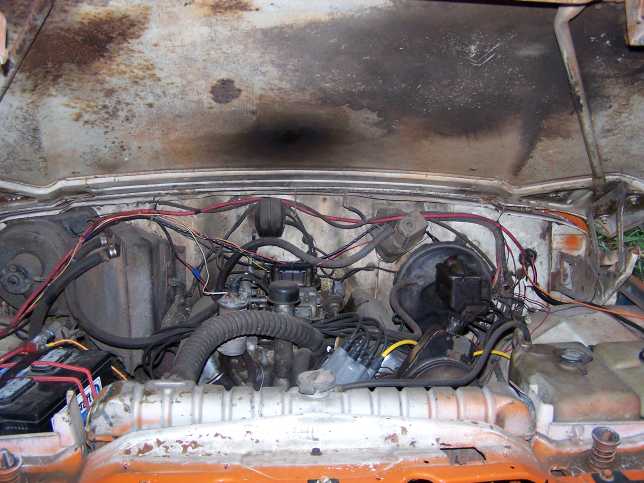

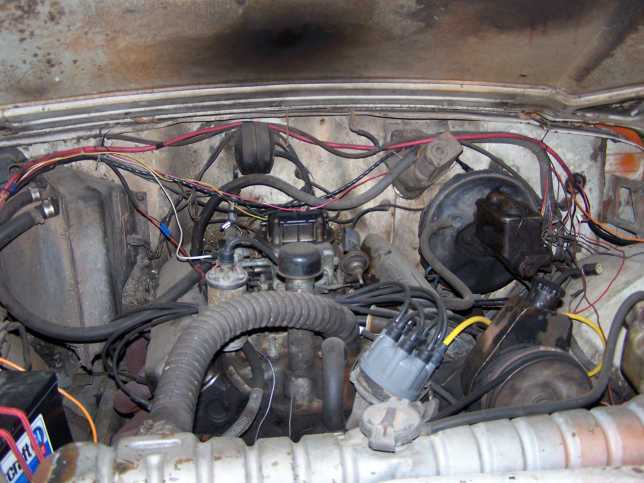

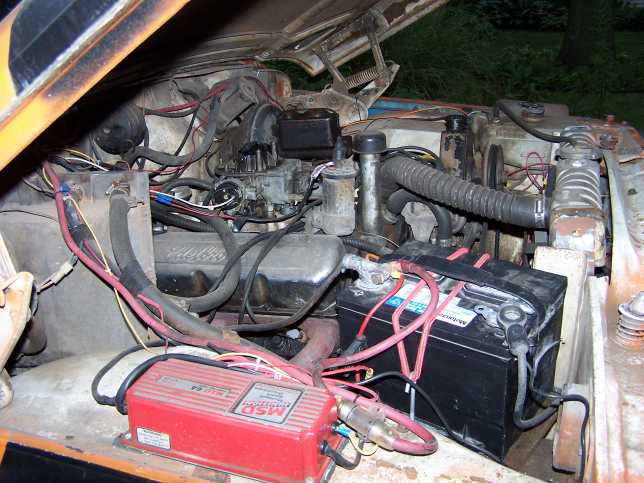

It will replace the tired AMC 360

9/17/06  Today I separated the engine harness from the body harness.  The donor was a wrecked 1998 Camaro z28.  I used a pinout diagram from here, and the haynes wiring diagram to tack down what needs to be kept.  It will be running a bare bones set up.

Check here for the Sensors and wires that were kept.  Where I live we have no emissions testing so the EGR, AIR, Rear O2 sensors, and Cats will be removed.  I will be running a th400 transmission that requires no computer control, so all of the pcm inputs and outputs for the transmission were also removed.  Lastly, cruise control, AC control, Traction Control and ABS were also taken out.

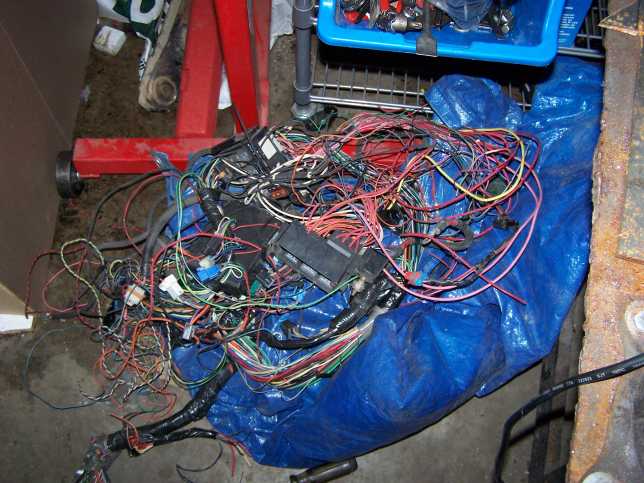

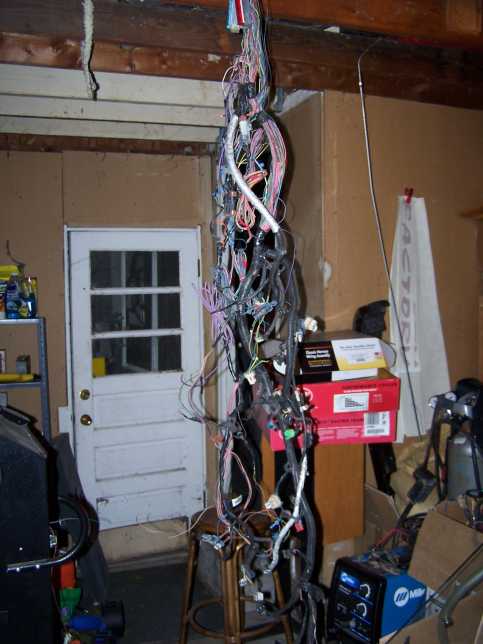

The engine wiring harness	What's left over

9/22/06  The removal process began today.

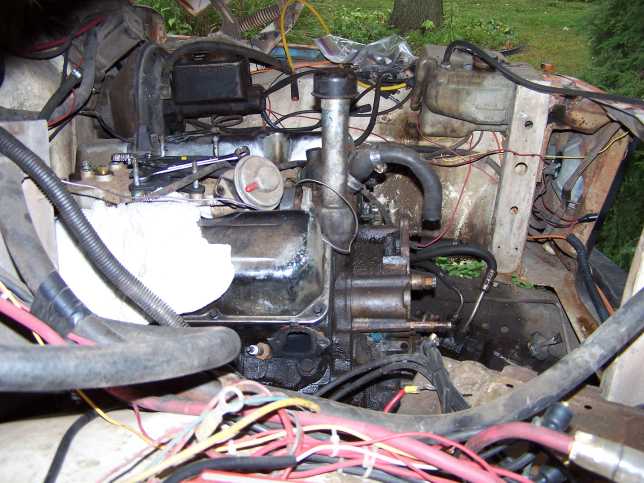

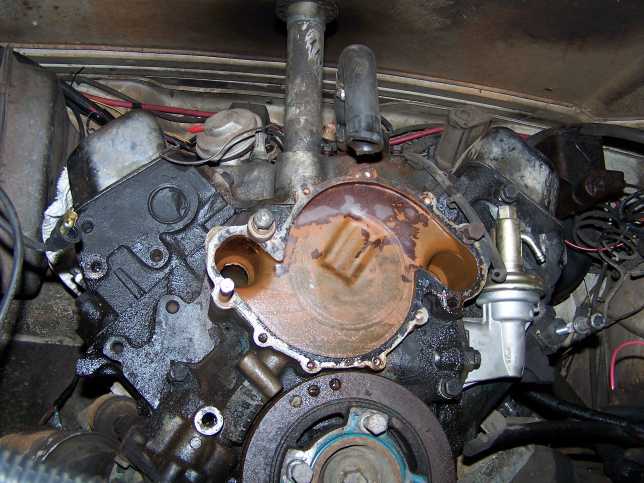

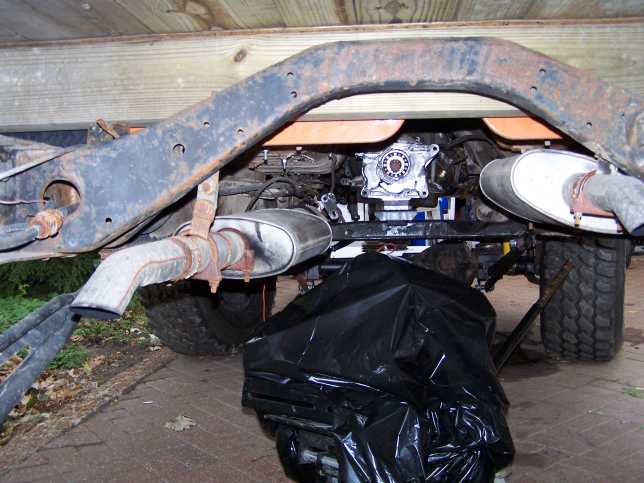

Removed the front grill	Accessories gone	Accessories gone from the front	Transfer case removed

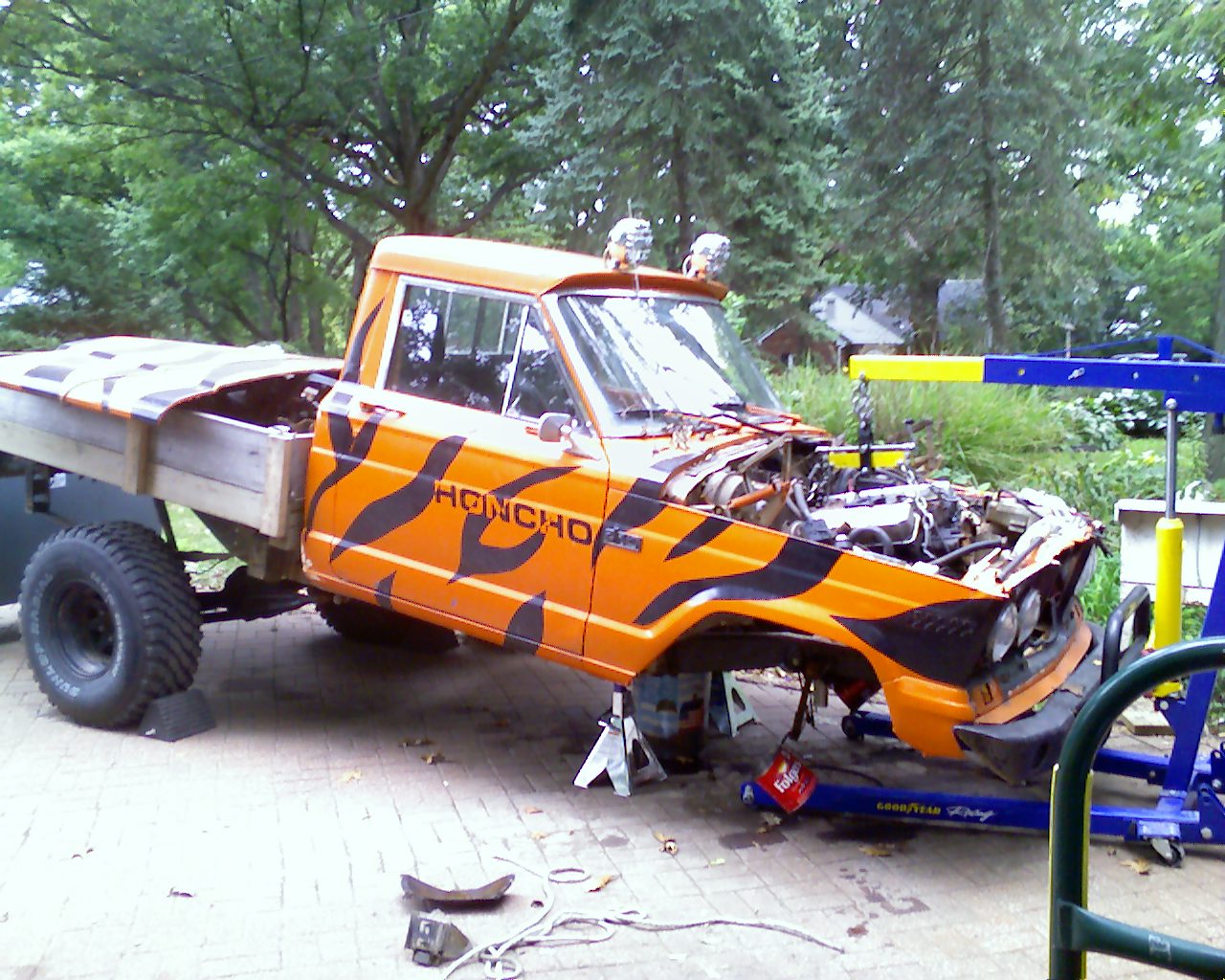

9/24/06  Motor and trans are out.

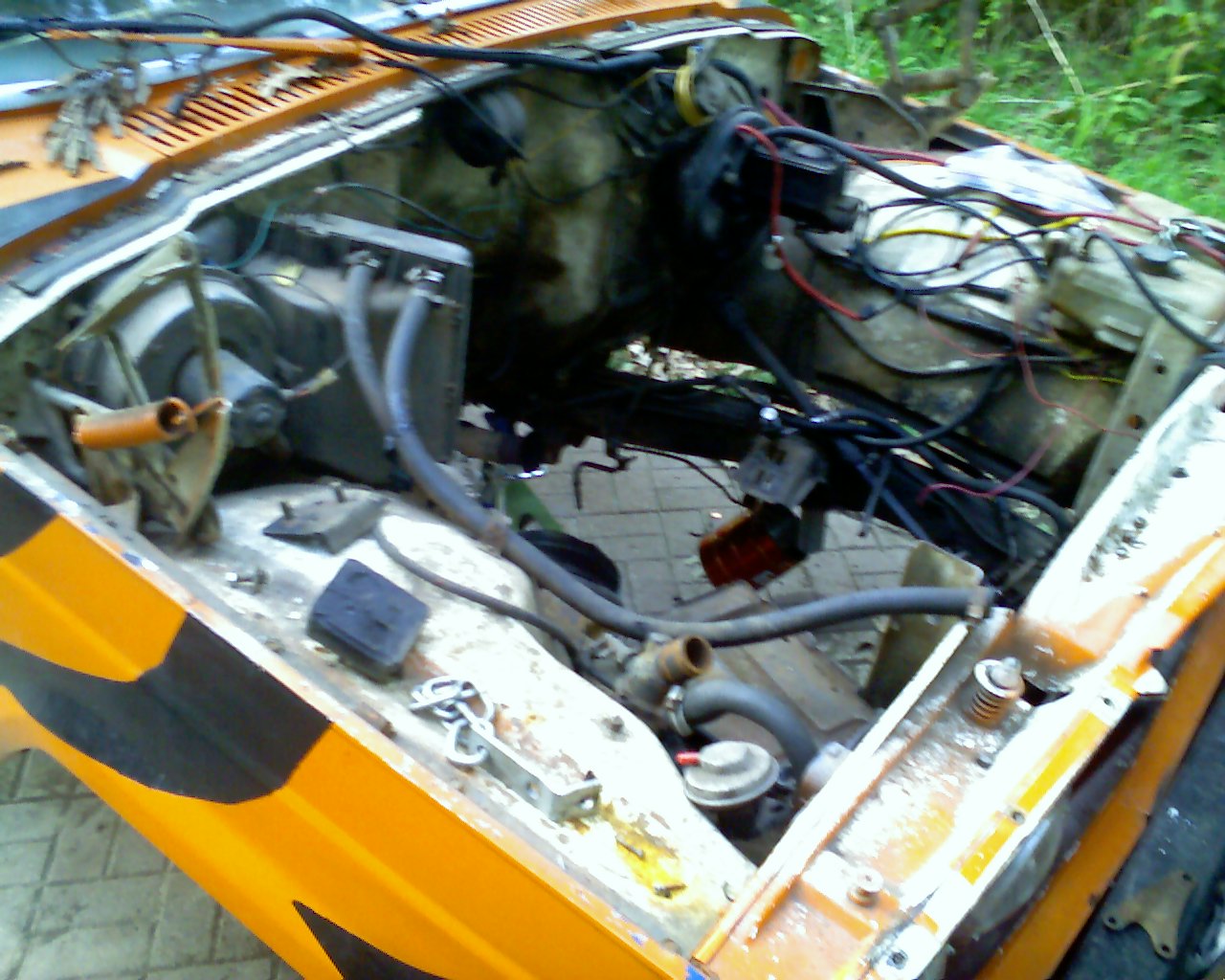

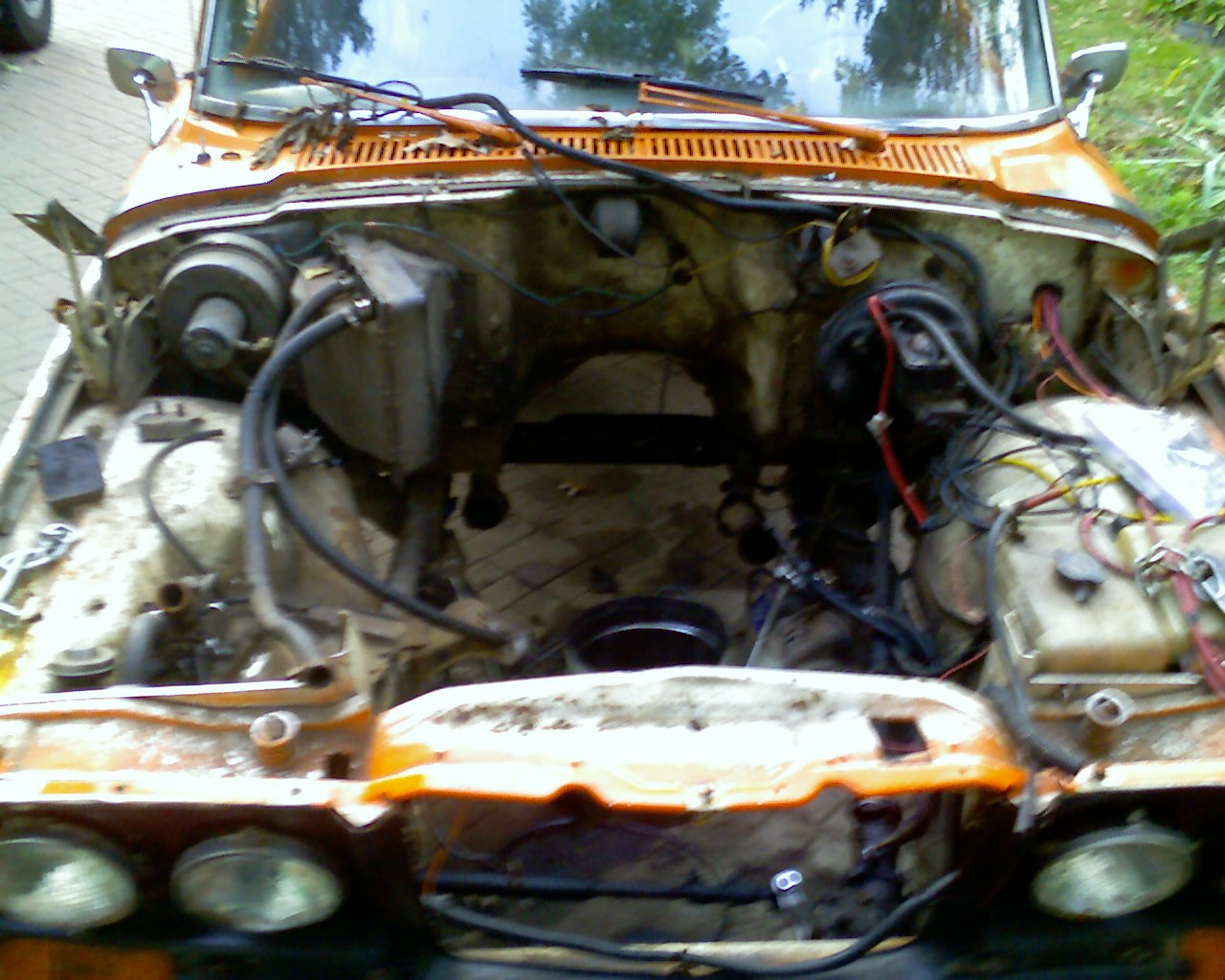

What else are you going to do	Almost out	Big Hole	Big Mess

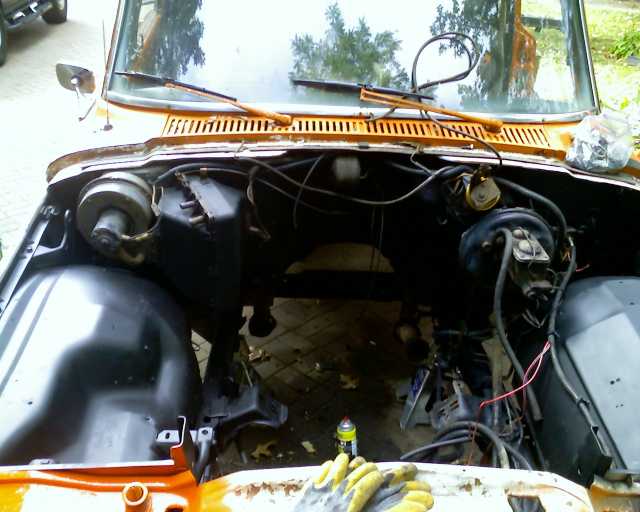

10/3/06 Motor Bay Clean up and Test Fit

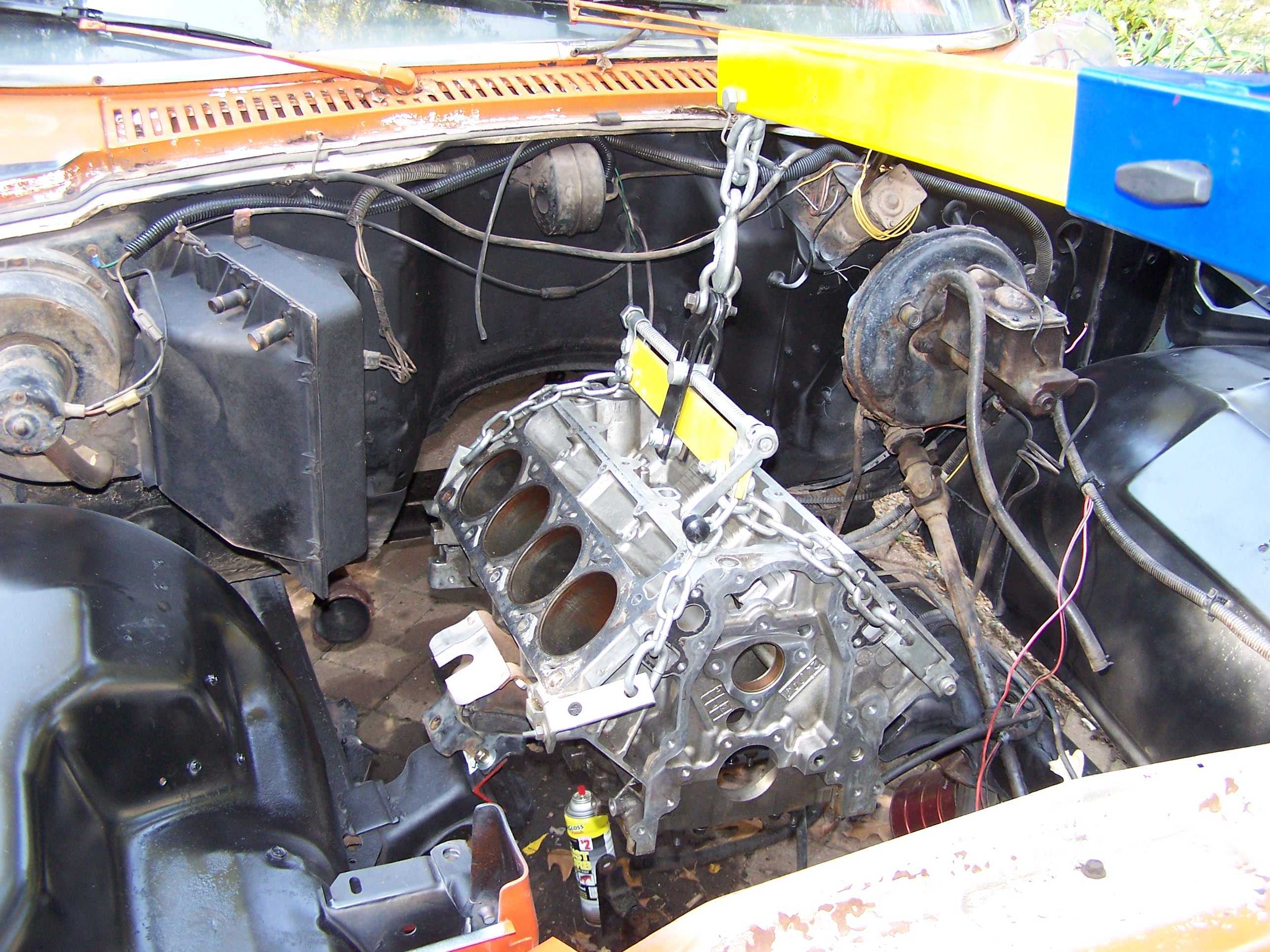

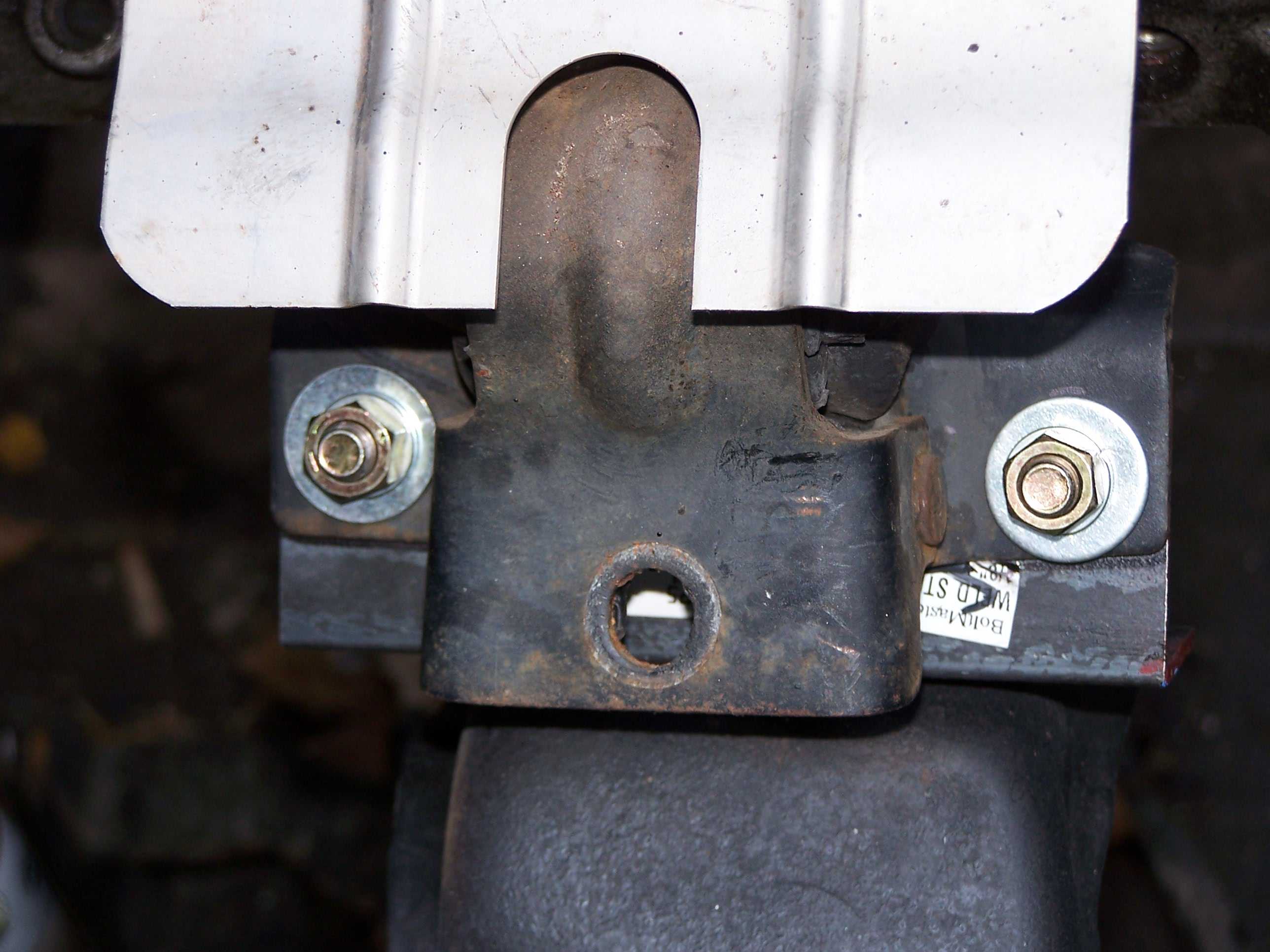

A little elbow grease and a little paint do wonders	"Its in there.. Oh Boy is this great!"	motor mount verson 1.0

The Motor is in place	From the pass side	Drivers side	Trans mounted pass side
Trans mounted drivers side	Motor mount and trans drivers side	trans and adapter mounted
